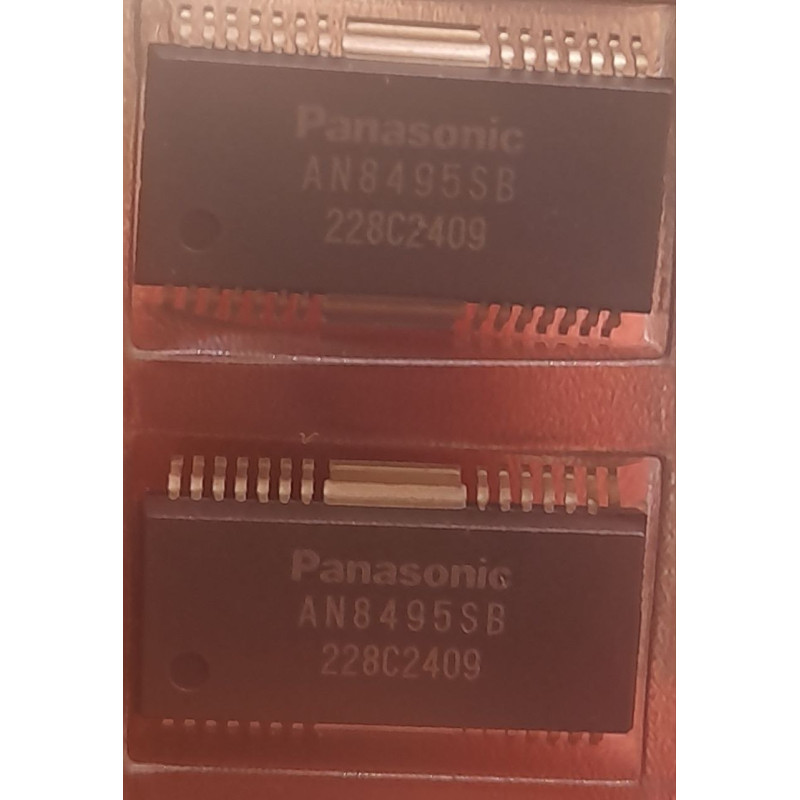

Chip Panasonic AN8495SB
- Brand: Panasonic
- Product Code: AN8495SB
- Availability: In Stock
$4.00
- Ex Tax: $4.00
Stepping Motor Drive IC AN8495SB I Overview AN8495SB is a stepping-motor-driving IC, created by using a D-MOS process, and provides a maximum output of 30V at 1.5A. By the PWM drive and 2-bit constant-current-chopping-drive method, the winding 1-2 phase drive is possible. 18.40±0.20 (5.15) (4.80) 28 22 21 15 Unit:mm (1.315) 8.30±0.20 10.93±0.30 0.30+-00..1005 I Features G 4-phase input (W1-2 phase excitation ) G 2-bit current level s.
